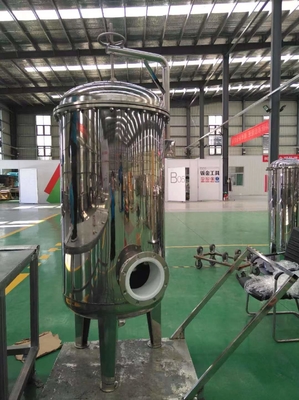

1T/H-100T/H Precision Filtration For Purified Water Industrial Process Water Filtration System

Place of Origin Tai'an, Shandong
Brand Name Tonglida
Certification ISO9001 Quality System Certification
Model Number 1T/H-100T/H
Minimum Order Quantity 1 unit
Delivery Time As per requirements

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Features Pre-treatment For Producing Purified Water, Boiler Feedwater, Industrial Process Water, And Drinking Water. Product Information Quartz Sand Filtration, Activated Carbon Filtration, Manganese Sand Filter, Shallow Bed Sand Filtration, Self-cleaning Filtration, Precision Filtration
Material Stainless Steel, Carbon Steel, Fiberglass Purpose Production Of Purified Water, Boiler Feedwater, Industrial Process Water, And Drinking Water Filtration System
Brand Tonglida
Highlight

100t/h precision filtration

,

1t/h precision filtration

,

1t/h activated carbon filtration
Leave a Message
Product Description





Product Description:

The filtration system is a comprehensive setup which comprises a range of different filters such as quartz sand filter, activated carbon filter, manganese sand filter, shallow bed sand filter, self-cleaning filter and precision filter. The user can select from a variety of filter media and filter cartridges with varying degrees of precision based on the specific requirements. The system operates under a certain amount of pressure to effectively eliminate suspended solids, organic matter, colloidal particles and other impurities from turbid water. It can also successfully remove odors and colors, resulting in high-efficiency filtration and purification of water quality.

This filtration equipment is widely employed in numerous industries, including but not limited to power, electronics, beverages, tap water treatment, petroleum, chemicals, metallurgy, textiles, papermaking, food, swimming pools, municipal engineering, and many other processes where industrial water, domestic water, circulating water, and wastewater treatments are necessary.

Project Name φ200 φ300 φ400 φ500 φ600 φ800 φ1000 φ1200 φ1400 φ1400 φ1500 φ1600 φ1800 φ2000 φ2200 Unit
Filter processing 0.5 1 2 4 6 8-10 12-16 20-25 30 35 40 50 60 75-80 100 t/h
Working pressure 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 MPa
Operating temperature 5-40 5-40 5-40 5-40 5-40 5-40 5-40 5-40 5-40 5-40 5-40 5-40 5-40 5-40 5-40 0C
Filter area 0.03 0.07 0.13 0.2 0.28 0.5 0.785 1.13 1.54 1.54 1.77 2.01 2.54 3.14 3.8 m2
Filter layer height 1200 1200 1200 1200 1200 1200 1200 1200 1200 1200 1200 1200 1300 1300 1300 mm
Total height 1600 1800 1800 2200 2200 2400 2500 2600 2700 2700 2800 2900 3200 3400 3600 mm
Raw water inlet diameter 20 25 32 40 40 50 70 80 100 100 125 125 150 200 200 mm
Clean water outlet diameter 20 25 32 40 40 50 70 80 100 100 125 125 150 200 200 mm
Backwash water inlet diameter 20 25 32 40 40 50 70 80 100 100 125 125 150 200 200 mm
Compressed air inlet diameter               25 25 25 32 32 32 32 32 mm
Water drainage diameter for normal washing 20 25 32 40 40 50 70 80 100 100 125 125 150 200 200 mm
Backwash water drainage diameter 20 25 32 40 40 50 70 80 100 100 125 125 150 200 200 mm
Equipment weight 235 330 415 650 800 1300 2047 2849 3549 4090 4690 5800 6680 8530 9600 kg



Features:

Pre-treatment for Water Production

Pre-treatment is an important process in producing various types of water such as purified water, boiler feedwater, industrial process water, and drinking water. This process involves the removal of impurities, particles, and contaminants in the water before it undergoes further treatment to achieve the desired quality and standards.

For purified water production, pre-treatment usually involves using a combination of physical and chemical methods such as sedimentation, filtration, and reverse osmosis. These methods help remove suspended solids, bacteria, viruses, and dissolved salts in the water, producing water that is safe for consumption and free of unwanted impurities.

Similarly, in producing boiler feedwater, pre-treatment involves using various methods such as ion exchange, de-aeration, and chemical treatment to reduce the risk of corrosion and scaling in the boiler system. This ensures that the boiler operates efficiently and safely, reducing maintenance costs and downtime.

In industrial process water production, pre-treatment is crucial in preventing negative impacts on equipment, product quality, and the environment. Depending on the specific requirements of the industrial processes, pre-treatment can involve a range of methods such as biocide treatment, pH adjustment, and sedimentation to ensure that the water is suitable for its intended use.



Technical Parameters:

Efficient filtration: To meet the onsite filtration needs, the filtration system can choose different filter media to effectively eliminate impurities such as suspended solids, organic matter, colloidal particles, microorganisms and enhance the water quality.



Biological purification: The filtration system can further decompose organic matter and harmful substances in water, thereby enhancing the purification effectiveness.



Backwash regeneration: The filtering performance of quartz sand can be revived through the backwashing and regeneration process, enabling continuous water purification.



Space-saving: With its compact structure and small floor space, the filtration system is particularly ideal for environments where space is limited.



Easy installation: The filtration system is easy to operate and install. Simply connect it to the inlet and outlet water pipes for immediate use. With its long service life, the system helps to reduce operating costs.



Strong adaptability: The filtration system is suitable for different water qualities and quantities, demonstrating good adaptability.



Applications:

Our filtration systems are designed for a wide range of applications, including the filtration of industrial process water. They are particularly useful for protecting nozzles and heat exchange station water.

We specialize in the filtration of industrial circulating water used in industries such as steel, metallurgy, papermaking, heat exchangers, power generation, petrochemicals, food, and air conditioning systems. Our filtration systems are designed to meet the high demands of these industries and are easy to maintain.

Our filtration systems also provide excellent raw water treatment, including surface water, rivers, lakes, and seawater. We can customize our systems to meet your specific needs and ensure clean and safe water for your operations.

Our irrigation filtration systems are perfect for agricultural fields, parks, municipal water supplies, and golf courses. With our systems, you can ensure consistent and reliable water filtration for your irrigation needs.

We offer water filtration services for aquaculture, swimming pools, and water parks as well. Our customized systems provide reliable and safe water treatment for these industries.

We offer filtration solutions for various industries such as power, electronics, beverages, tap water treatment, petroleum, chemicals, metallurgy, textiles, papermaking, food, swimming pools, and municipal engineering. Our filtration systems are designed for all types of water treatment, including industrial water, domestic water, circulating water, and wastewater treatment.
