Installed Electric Condensate Recovery System For 2000kg/h Steam Boiler

Place of Origin Taian, China
Brand Name Tonglida
Certification ISO 9001
Model Number TLD-2T/H
Minimum Order Quantity 1
Price $3000/Unit
Packaging Details Wooden Case or Optional
Delivery Time 15 working days
Payment Terms L/C, T/T
Supply Ability 100 unit/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Voltage 220V, 380V, Optional Application Industrial And Commercial Use
Control Mode Fully Automatic Control, PLC Control Power Source Electricity
Material Stainless Steel, Carbon Steel Certifications ISO9001 Quality System Certification
Working Pressure 0.1-1.6MPa Drive Mode Electric
Recovery Capacity 1-100T/H Color Silver, Blue, Red And Optional
Control System Automatic Customization Customization Supported
Power Supply Optional Weight Varies Depending On Model
Frequency 50Hz
Highlight

Electric Condensate Recovery System

,

2000kg/h Condensate Recovery System

,

Steam Boiler Condensate Recovery System
Leave a Message
Product Description

Introduction

Low-pressure steam boilers operate with about 25% waste heat of its own, generating a large amount of steam condensate that is still discharged through the trap.



What is electric condensate recovery system?

The electric condensate recovery system uses an electric pump to recycle condensate to a specified location.



Working Principle
Steam generated by the boiler is delivered to the heat exchange equipment through piping. The steam releases a large amount of heat during the heat exchange process, and the temperature falls (usually 70-90°C), and then turns into condensate, which is recycled to the boiler or to a customer-specified location through the condensate recovery device.

Installed Electric Condensate Recovery System For 2000kg/h Steam Boiler 0

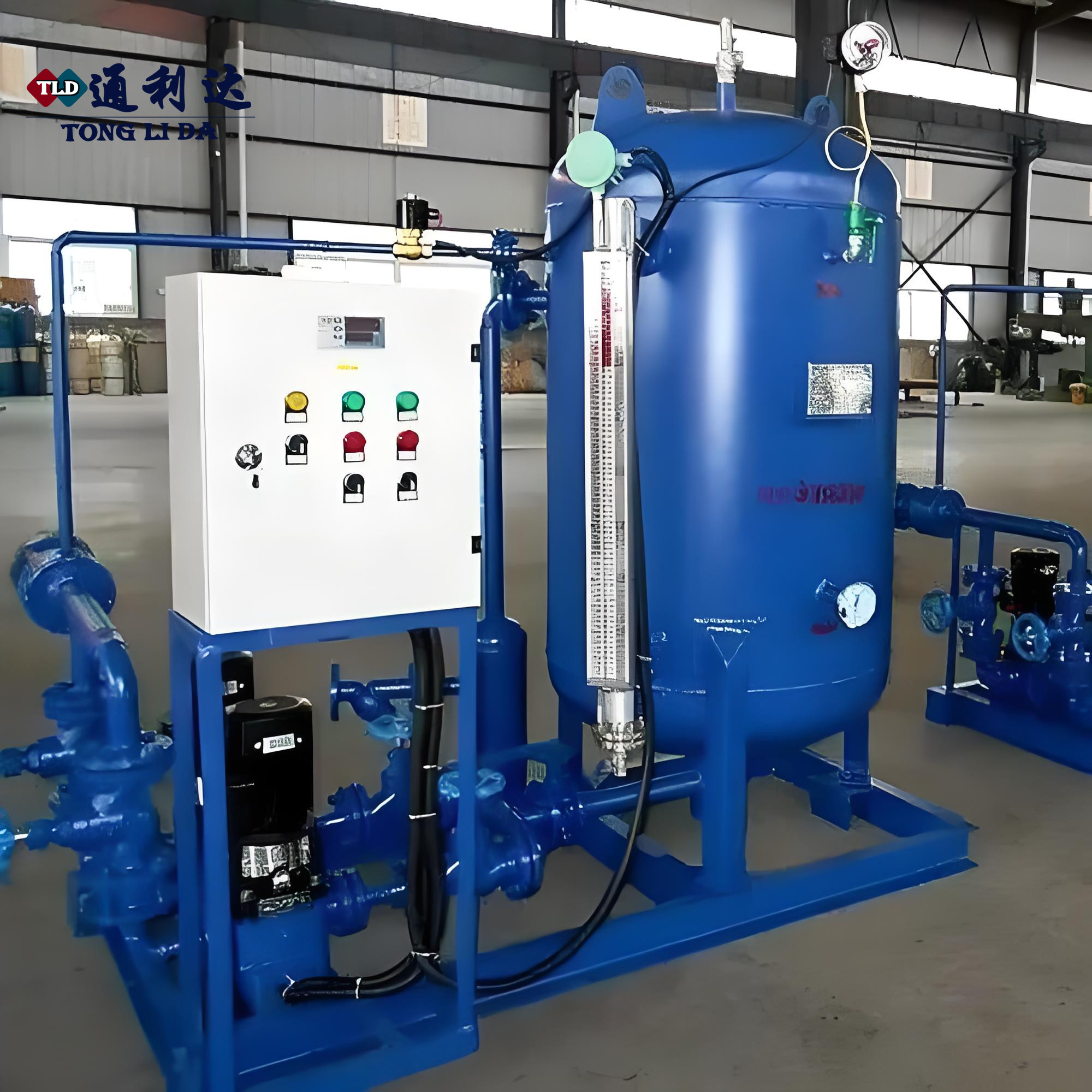

System Configuration Size(m) Weight Special Requirements
1. Fully automatic control box

1.6*0.7

*1.6

 550kg 1. Explosion-proof condensate recovery device (applicable to flammable and explosive gases or dust places, need to consider the explosion-proof level and explosion-proof area)
2. Double pumps with one backup 2. Automatic control, DCS control, PLC control, etc. are available.
3. According to the liquid level to control the pump start and stop: high sensitivity liquid level controller 3. Materials include stainless steel, carbon steel, etc.
4. Instrumentation: magnetic flip-plate level meter, pressure gauge, temperature gauge 4. High temperature and high pressure design
5. Valves including check valves, globe valves, etc. 5. Intelligent monitoring and control
6. Anti-cavitation devices, vapor separation devices, pressure regulators 6. Customized explosion-proof grade
7. Blowdown apparatus 7. Customized protection level
8. Pipeline filters 8. Customized low temperature
9. Steam condensate recovery tank 9. Customized for high altitude
  10. Can be customized for outdoor
  11. Customized according to customer's requirements
